Article #10.1: Mono / Stereo Buffer Amp
copyright ©1999 Paul Blitz
Introduction
Read articles 2 and 10 for info on how these buffer circuits work!
This version is a stereo in, with 2 x Stereo ouputs and 2 x Mono
outputs. If you need more than that, just keep adding copies of the
relevant bits!

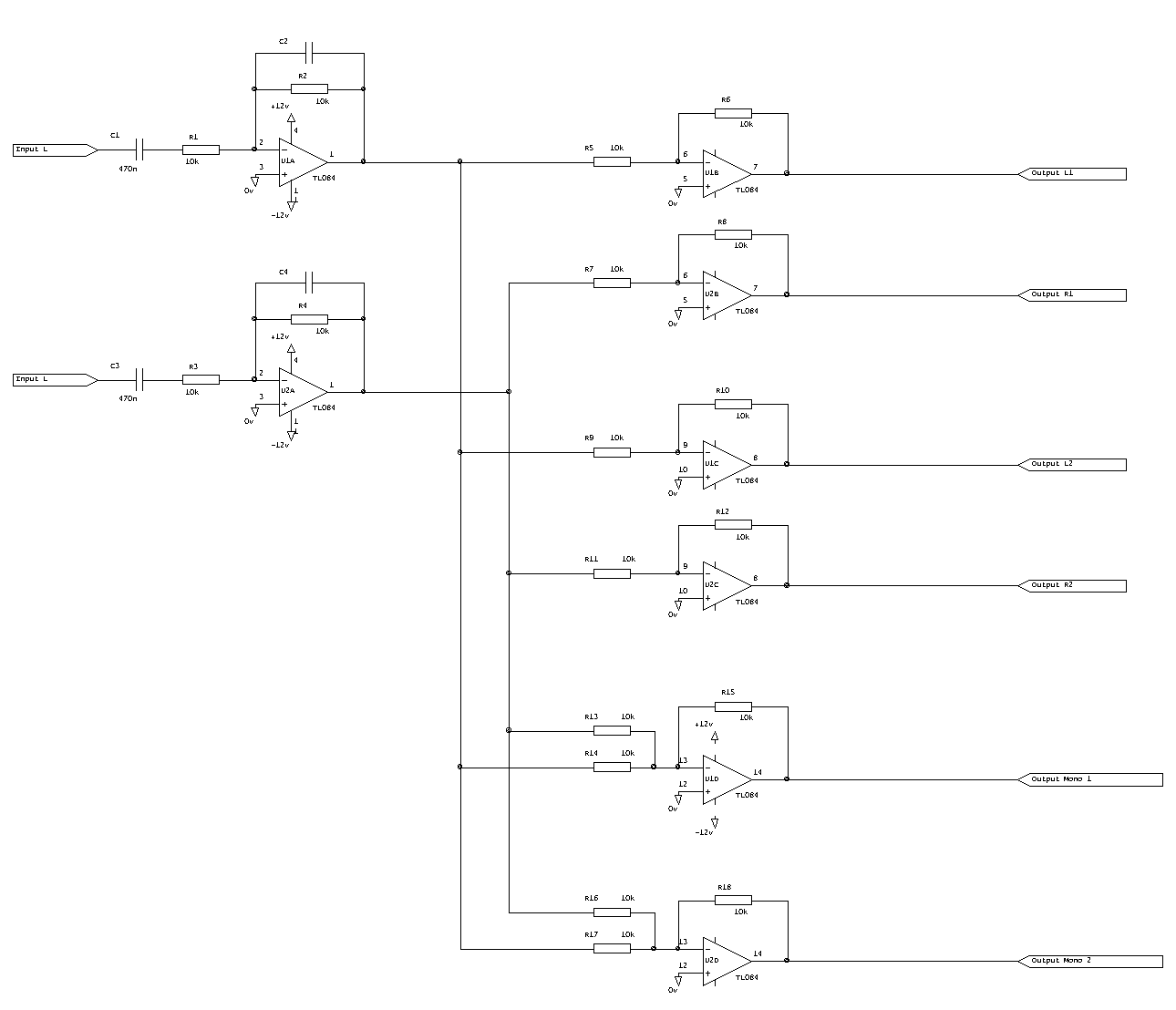

Block Diagram
Let me download the circuit details!
Circuit in GIF format (12k)
(plb, rev 1, Jan 2001)
