Article #2b: Myriad / IRN News mixing & buffering circuit (extended version)

copyright ©2001 Paul Blitz



This is a continuation of the Myriad stuff: this version has (a) 3 Myriad inputs; (b) IRN input; (c) buffered outputs of (a) and (b) (eg to feed a desk); Mixed Myriad with switched IRN (eg for station output)

Let me download the circuit details!

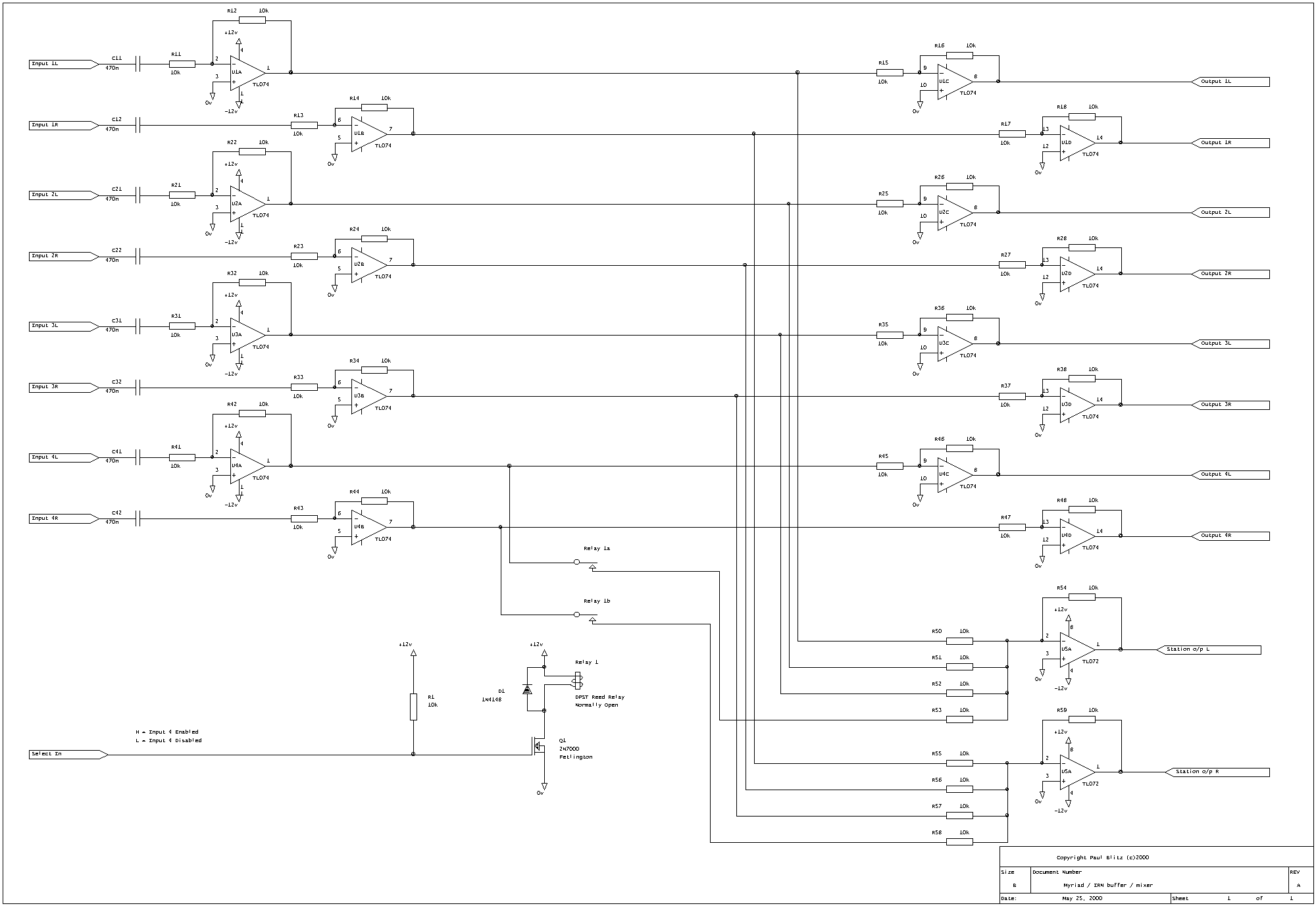

Circuit in GIF format (33k)

Adjusting the circuit

1) if you want 4 Myriad inputs rather than 3, then add another input & output buffer & mixing resistor

2) if you want another switched audio (OB?) then duplicate the IRN bit

3) if you want more outputs: take a look at the article on the Buffer Amplifuer & do a similar thing here!

And Finally....

Finally, if you need any help with the circuit in any way, then feel free to email me with your questions.


(plb, rev 1, Sept 1999)
